25PtIr200B-H(AFM 探针)

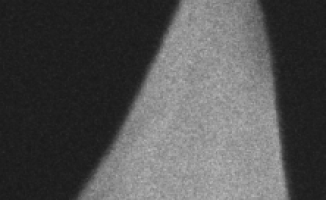

Rocky Mountain Nanotechnology, LLC, is the only company that manufactures and sells ultra-sharp, solid platinum and platinum-iridium AFM probes, for high resolution electrical measurements. These probes can be used in various modes, including tapping and contact and are ideal for C-AFM, EFM, KPFM PFM, SCM, SMM, SMIM, and SNOM applications. Each probe is imaged by FE-SEM to verify its tip radius. The probes have cantilever frequencies from 4.5kHz up to 100kHz. They also have a long lifetime and high reliability in electrical measurements. There is never an issue with conductivity because the probe tips are purely metallic.
The 25PtIr200B-H is the updated version of RMN’s high frequency probe, with prolonged mechanical wear. It is typically used for non-contact and tapping mode AFM measurements.
These probes are ideal for SNOM and high Frequency applications.
- Tip shank length: 80 μm (± 25%)
- Cantilever length: 200 µm (± 15%)
- Cantilever width: 50 µm (± 15%)
- Spring constant: 290 N/m (± 40%)
- Frequency: 105 kHz (± 30%)
- Standard tip radii below 20 nm for $100 each
- Tip radii below 10 nm on request for $120 each 25PtIr200B-H10
-
Non - standard probe tips and cantilevers upon request
